Product Summary

Supervisory Circuits Programmable-Delay Supervisory



Parametrics

Manufacturer: Texas Instruments
Product Category: Supervisory Circuits
RoHS:  Details
Number of Voltages Monitored: 1
Monitored Voltage: 0.4 V to 5 V
Undervoltage Threshold: 2.79 V
Overvoltage Threshold: 2.803 V
Output Type: Open Collector / Drain
Manual Reset: Resettable
Watchdog: No Watchdog
Battery Backup Switching: No Backup
Power-Up Reset Delay (Typ): Adjustable
Supply Voltage - Max: 6.5 V
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT

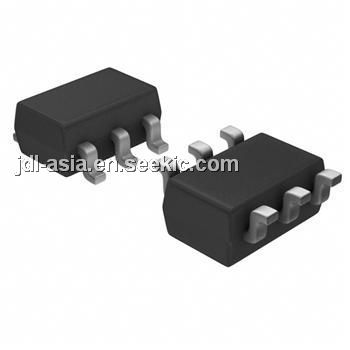

Package / Case: SOT-23-6
Packaging: Reel
Chip Enable Signals: No
Minimum Operating Temperature: - 40 C
Power Fail Detection: No
Series: TPS3808G30
Factory Pack Quantity: 3000
Supply Current (Typ): 2.4 uA
Supply Voltage - Min: 1.8 V

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS3808G30DBVR
TPS3808G30DBVR
Texas Instruments
Supervisory Circuits Programmable-Delay Supervisory
Data Sheet
0-1: $1.34
1-25: $1.08
25-100: $0.97
100-250: $0.84
TPS3808G30DBVRG4
TPS3808G30DBVRG4
Texas Instruments
Supervisory Circuits Programmable-Delay Supervisory
Data Sheet
0-1930: $0.59
1930-3000: $0.56
3000-6000: $0.54
6000-12000: $0.52
